22MM M8/M10 Motorcycle Upper Front Brake Clutch Master Cylinder CNC Clutch Pump Reservoir Pump Lever Left Right for Honda Suzuki
$20.99 USD$42.89 USD$21.90 USD off
Color: 8mm Mirror Right
-
Before use, it is necessary to exhaust the air, as follows:
1. Open the cover of the upper pump oil cup (the upper pump is fixed in the faucet state)
2. Repeatedly pinch the brake handle of the pump more than ten times, then hold it tightly, then loosen the oil drain screw of the lower pump, and repeat the operation until there is pressure on the brake handle. If the handle is too soft and there is no pressure, proceed to the next step.
3. Open the air exhaust screw on the lower pump. At this time, do not pinch the handle. Oil will flow out of the air exhaust screw hole, and at the same time, bubbles will also come out (the oil cup of the upper pump should not be short of oil in this operation step). When no bubbles are visible, tighten the air exhaust screw.
4. If the effect is not obvious, repeat 2 and 3
-
-

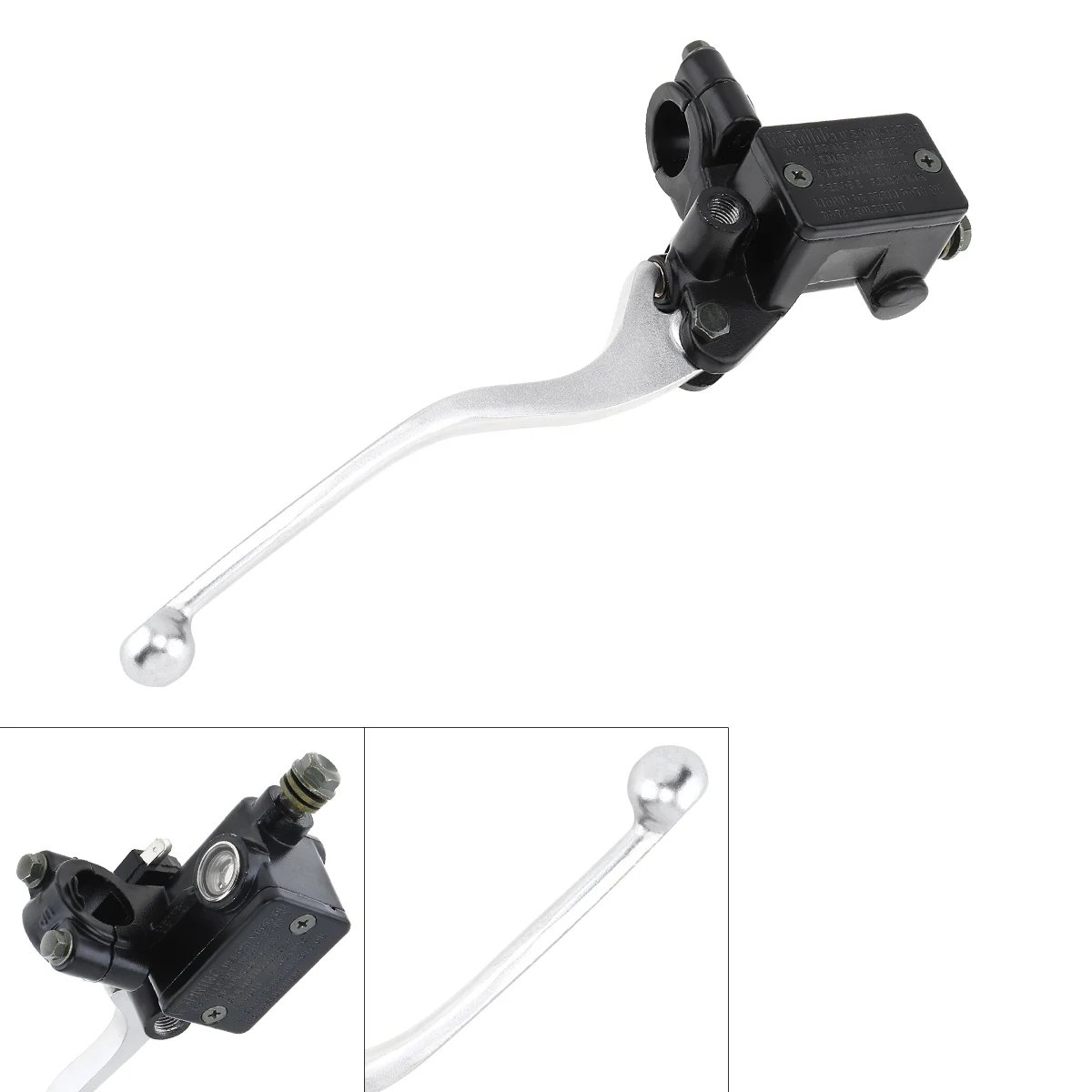

Product Name: Front Brake Pump Assembly
-
Color: Black
-
Type: Right
-
Material: Aluminum Alloy
-
Handlebar Inner Hole Diameter: 22MM
-
Features:
- Precision machined pivot bore to ensure a perfect fit.
- Easy to mount and easy to use.
An adjustable reach system provides the perfect lever position for all riders.
- Levers are adjustable, two fingers short levers, hydraulic and clutch brake, stainless steel hardware.
- Take your brake performance to a higher level. -
Handlebar Inner Hole Diameter: 22MM
-
Reflector Seat Hole Position: M10
-
Type: Right
-
Use Purpose: Brake
-
Place of Application: Fit for Honda Rincon 650 680 2003-2016 / Foreman 400 450 500 1997-2016, Fit for Honda Rancher 350 400 420 2000-2016 / Honda Recon 250 1997-2016, Fit for Honda 400EX / FourTrax / TRX 200 250 300 350 1985-2000
-
Product Weight: 340 G / 11.99 Ounces
-
Product Dimensions (L*W*H): 280*120*70 MM / 11.02*4.72*2.76 Inches
-
Package Weight: 340.0 G / 11.99 Ounces
-
Package Dimensions (L*W*H): 280*120*70 MM / 11.02*4.72*2.76 Inches
-
Retail Packaging: Yes, General Box
-
Package Including:
-
1 x Front Master Cylinder Levers / Right
